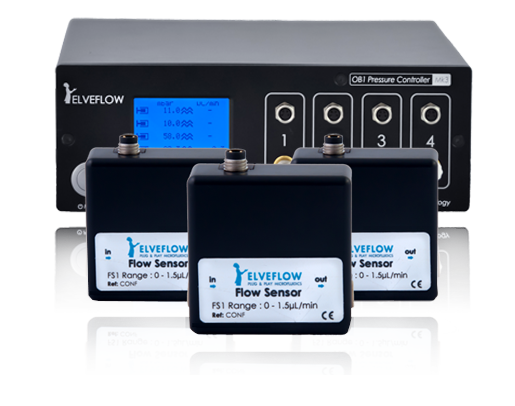

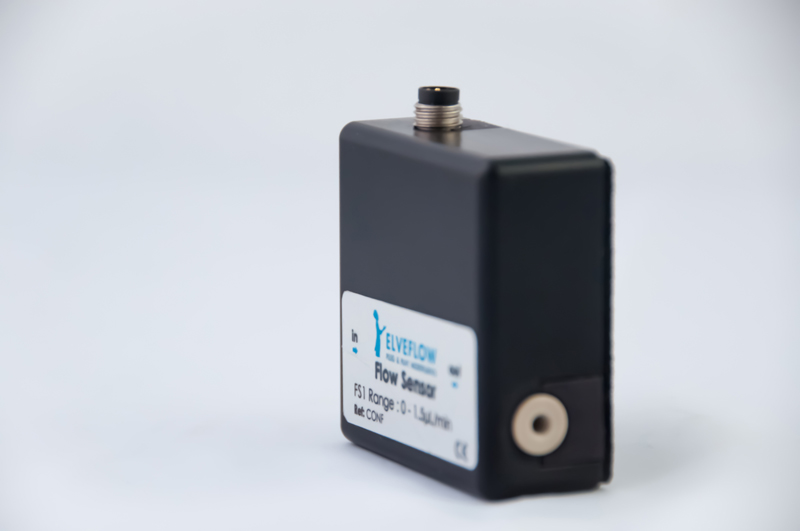

Microfluidic Flow Sensor MFS
High accuracy liquid flow sensors
Brand: Elveflow
Contact Us for better pricing.
Warranty Details
13 RANGES AVAILABLE AND 5DEDICATED TO MICROFLUIDICS
From 70 nL/min to 5 mL/min
Performance
Elveflow® integrates the best microfluidic flow sensor technologies. Our flow sensors achieve resolution rates as low as 1.5 pL/s, accuracy levels down to 0.15% of the full scale and response times down to 40 ms.
- Resolution down to 1,5 pL/sec
- 5 ranges from 1.5 µL/min to 5 mL/min
- Fully compatible with other Elveflow instruments
- Non-invasive measurements
- PEEK – High chemical compliance (1)
- Low dead volume down to 1 μL
- Bi-directional flow rate measurement (positive & negative)
Specification :
| Microfluidic Fitting Type | UNF 1/4-28 |
| Microfluidic Fitting Material | PEEK |
| Internal Sensor Capillary Material | Quartz / Borosilicate Glass |
| Electrical Input | 8 V 100 mA |
| Analog Output | 0 - 5 V |
| Flow Sensor Size (lenght x width x height) | 58 x 52 x 23 mm |
| Weight | 102 g |
