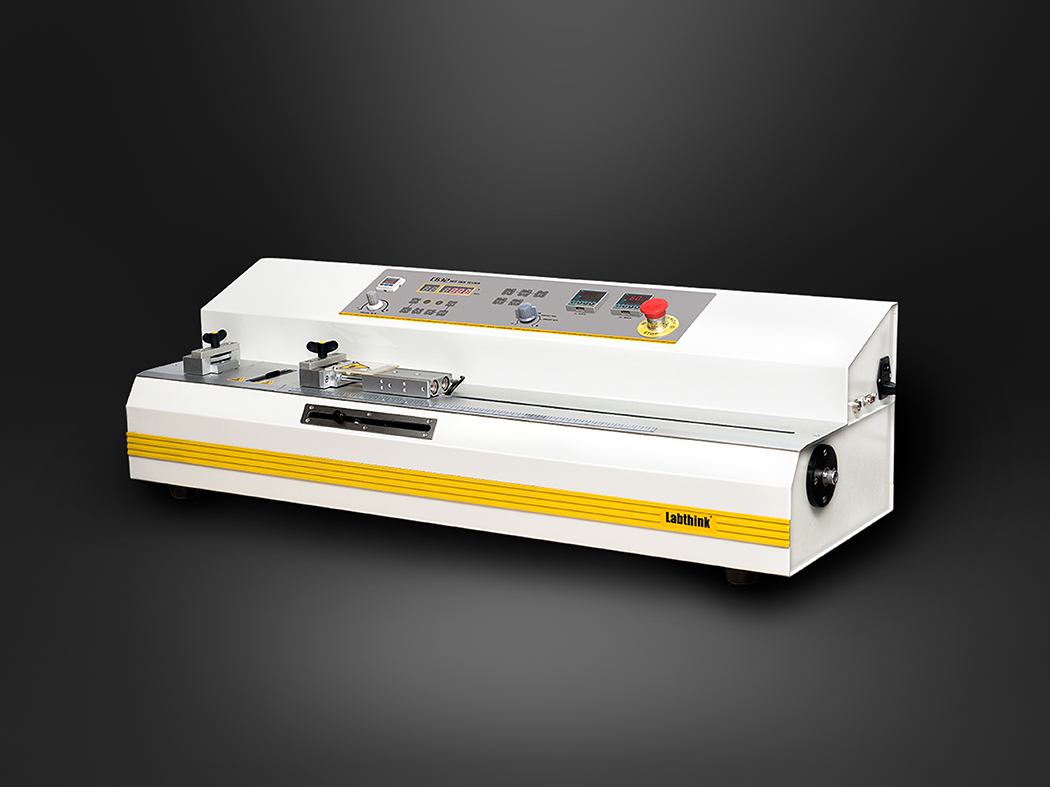

C632B Hot Tack Tester
C632B Hot Tack Tester is applicable in hot tack and heat seal performance tests for plastic films, laminated films and other packaging materials. It is applicable in peel test, tensile at break test, and other tests for adhesives, adhesive tapes, laminated films, plastic films, paper and other flexible materials.
Brand: Labthink
Contact Us for better pricing.
Warranty Details
Product Features
Multiple Test Modes in One Instrument
- Four test modes including hot tack, heat seal, peel and tensile test.
- With Digital P.I.D. temperature control system, the preset temperature can be reached in a short time without fluctuations.
- Four force test ranges and 6 testing speeds are available to meet various testing requirements
- The instrument meets the requirement for testing speed specified in standard GB/T 34445-2017
Excellent Designs & Auto Sampling
- Auto sampling for hot tack test, simplifies the testing operation and minimizes errors, ensures the uniformity of test data
- Pneumatic sample clamping system (optional)
- Automatic zeroing, error alert, overload protection and stroke protection guarantee safe operations
- Instrument can be started manually or by pedal switch. it is convenient for the operator and the anti-scald design ensures safe operations
- Components and parts of the instrument are supplied by world renowned manufacturers and have reliable performance
Computer & Instrument Controlled Operations
- Test operations can be performed on the instrument or by the software
- The instrument can be operated without a computer, easy to operate and view test data
- Data I/O ports for data export
Test Standard
GB/T 34445, ASTM F1921, ASTM F2029, QB/T 2358, YBB 00122003
Specification :
| Load Cell Capacity | 30 N (Standard) 50 N 100 N 200 N (Optional) |
| Force Accuracy | Indicated Value ±1% (10%-100% of load cell capacity) ±0.1%FS (0%-10% of load cell capacity) |
| Force Resolution | 0.01 N |
| Test Speed | 150 200 300 500 hot tack 1500mm/min, 2000mm/min |
| Specimen Width | 15 mm, 25 mm or 25.4 mm |
| Stroke | 500 mm |
| Heat Seal Temperature | Room Temperature ~ 250°C |
| Temperature Variation | ±0.2°C |
| Temperature Accuracy | ±0.5°C (Single Point Calibration) |
| Dwell Time (Heat Seal Test) | 0.1 ~ 999.9 s |
| Dwell Time (Hot Tack Test) | 0.1 ~ 999.9 s |
| Sealing Pressure | 0.05 Mpa ~ 0.7 MPa |
| Sealing Area | 100 mm x 5 mm |
| Sealing Jaws | Double (one is silicon rubber) |
| Gas Supply | Air (Not in supply scope) |
| Gas Supply Pressure | 0.7 Mpa (101.5psi) |
| Port Size | ?4 mm PU Tubing |
| Instrument Dimension | 1120 mm (L) × 380 mm (W) × 330 mm (H) |
| Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net Weight | 45 kg |
