Material Science & Nanotechnology
Glove Box

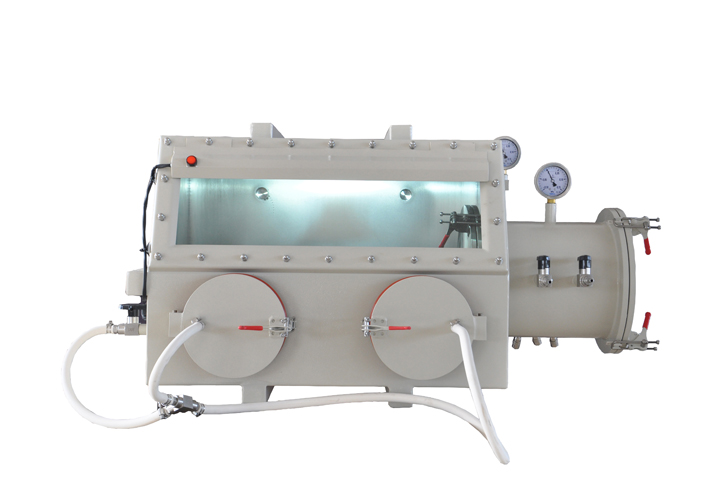

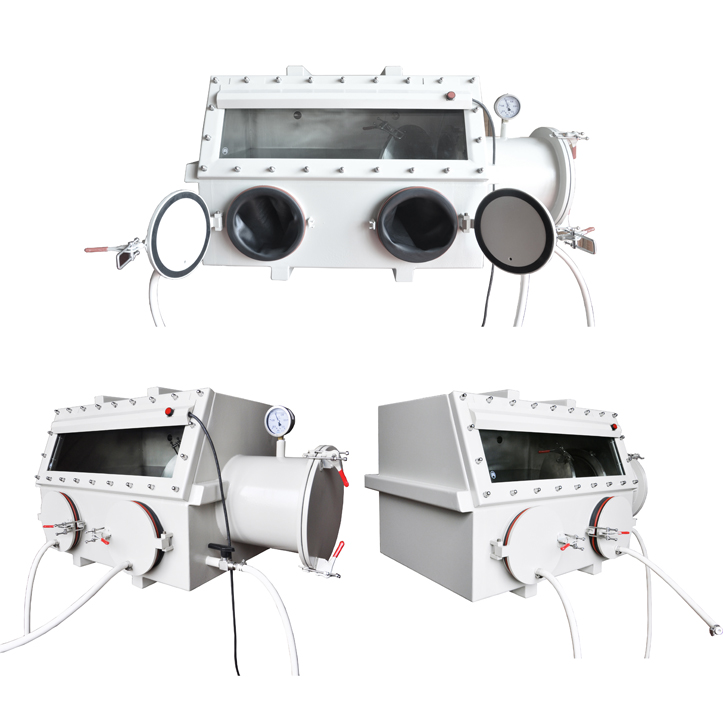

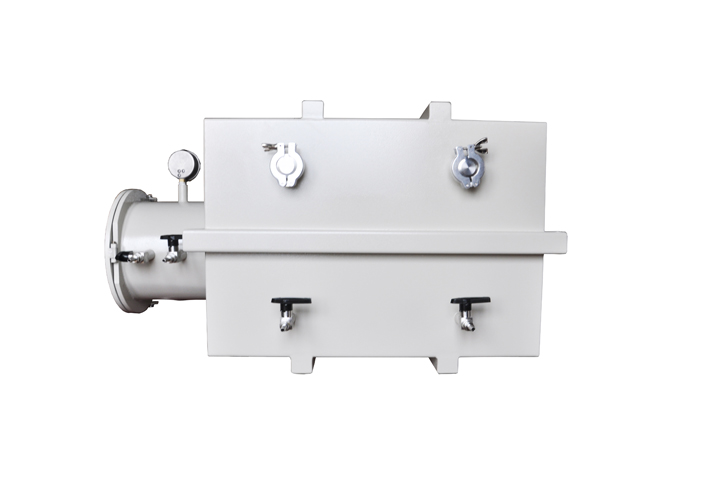

Vacuum Glove Box System VBG-1
Glove Box with vacuum environment up to -0.1MPa
Brand: 1ADRY / TORUN
Contact Us for better pricing.
Warranty Details
Vacuum glove box provides a sealed case. It can fill with inert gas such as nitrogen, argon after vacuuming, thereby formed a stable inert gas protection environment.
Options
1.Oxygen monitoring unit (0 -1000 PPM )
2.Moisture monitoring unit(0-1000 PPM)
3.Automatic Pressure Controller
4.Automatic Humidity Controller (1-99%RH)
5.Solvent removal system
6.Open loop / Closed-loop HEPA Filters
7.High speed vacuum pump (1.5L/S High speed vacuum pump)
8.Purification System
Specification :
| Material | Stainless SUS304, 3MM |
| Main Chamber Dimension | 600mm(L)×450mm(W)×420mm(H) |
| Main Chamber Pressure | Max. Positive Pressure: 0.1MPa, Max. Vacuum Level: -0.1MPa |

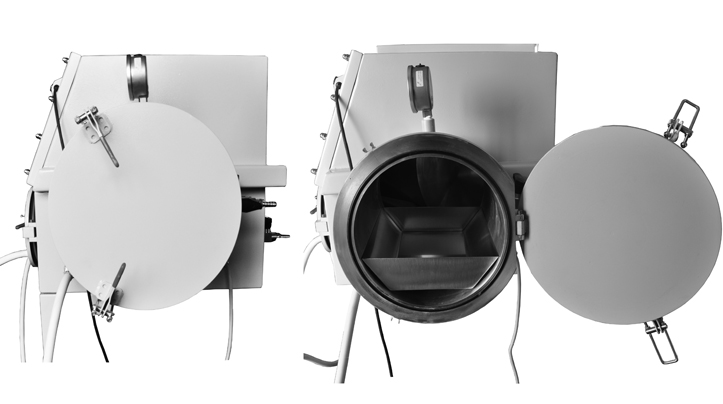

| Antechamber Dimension | made of 304 stainless steel ø210mm, length =260mm, right side, with slidable tray inside |
| Antechamber Pressure | Max. Positive Pressure: 0.1MPa, Max. Vacuum Level: -0.1MPa(Absolute Vacuum situation) |
| Window Panel | 1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm) |
| Gloves | 1 pair of latex gloves |
| Lighting System | 1 Lighting System (220V, 60Hz) |
| Pressure Gauge | 1 Pressure Gauge on Antechamber |
| KF Connectors | Standard KF-25 connectors and needle valves |
