Food Microbiology

EasySpiral® Dilute Automatic Diluter and Plater

EasySpiral® Dilute Automatic Diluter and Plater

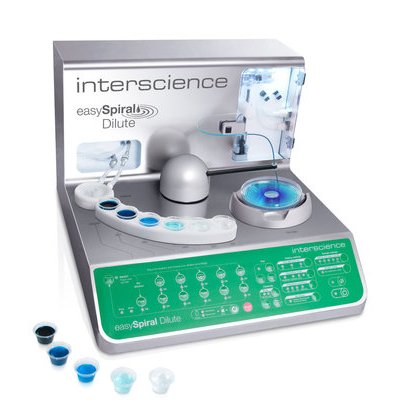

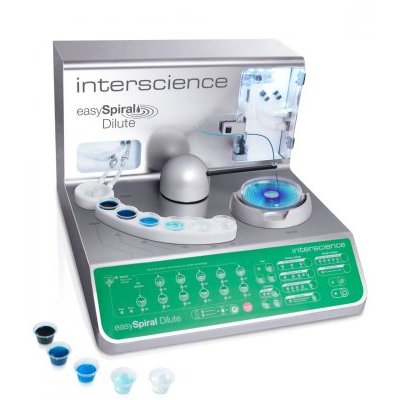

EasySpiral Dilute is an automatic diluter and plater with full traceability. It allows you to do 5 x serial 1/10 dilutions and automatic plating on 1 single Petri dish, with a countable range of 1 to 1012 CFU/mL. No more hours of dispensing tubes, autoclaving and washing tubes, no more pipette calibration. So much quicker than any other lab routine, it guarantees you increased accuracy and boosts your lab work!
Pricing & Availability Download Catalogue Interscience
Brand: Interscience
Contact Us for better pricing. Warranty Details

Automatic sample diluter & plater with full traceability

1. A REVOLUTION IN SERIAL DILUTIONS
- Choose your dilutions factor
- Do 10-5 dilution or more automatically
- No more 9 mL tube preparation
Patented

2. ONE-TOUCH PLATING
- Choose from 4 plating modes
- Plate on 55, 90 and 150 mm Petri dishes

3. HIGH-SPEED AUTOMATION
- Fast rotating arm
- 1 disinfection + 5 dilutions + 1 plating in 134 s
- 1 disinfection + 5 dilutions + 6 platings in 234 s
- 5 dilutions + 1 plating in 116 s
Patented

4. AUTOMATIC DISINFECTION
- Overflow technology cleaning system
- No cross contamination
- 2 fully autoclavable bottles (diluent & disinfectant) and connectors
Patented

5. EXCELLENT REPRODUCIBILITY AND REPEATABILITY
- In compliance with AFNOR V08-100 / ISO 7218

Specification :
Petri dish diameter 55 mm, 90 mm and 150 mm
Syringe capacity 1 000 ?L
Programmable dispensed volume (via USB) from 10 ?L to 1 000 ?L
Preset dispensed volume 50 ?L, 100 ?L and 200 ?L
Counting range 30 to 1x1012 CFU/mL
Plating modes 55 mm: constant, pour plate 90 mm: exponential (10-5), constant, circle (3 dilutions), pour plate 150 mm: exponential (10-7), constant, circle (6 dilutions), pour plate
Number of dilutions at 1/10th for 1 cycle 5
1 disinfection + 5 dilutions + 1 plating 10-5 134 s
1 disinfection + 5 dilutions + 6 plating of each dilution 234 s
Disinfectant autonomy 1000 (with 2 L bottles)
Diluent autonomy 63 cycles (with 2 L bottles)
Circle mode (patented) 3 dilutions on a 90 mm Petri dish 6 dilutions on a 150 mm Petri dish
Stylus disinfection system (patented) inside and outside by Overflow technology
Pressure in the stylus 8 bars
Successive plating capacity with the same sample Up to 20 Petri dishes (50 ?L)
Traceability excelTM, Data Matrix labels
Monthly cleaning program Yes
Filling time programmable via USB Yes
My Diluent key Yes
Sample mixing before dilution/plating Yes
Controlled by microprocessor Yes
Dimensions (w x d x h) 39 x 42 x 29 cm
Weight 15.6 kg
Power supply 100-240 V / 50 Hz to 60 Hz
Power 65 W
All stainless steel Yes
